- Maximum Output Power at 14.4V DC 1-Ohm: 5100W RMS
- Maximum Output Power at 14.4V DC 2-Ohm: ?W RMS
- Maximum Output Power at 14.4V DC 4-Ohm: ?W RMS
- Input Sensitivity: 200MV
- Frequency Response: 10Hz-20kHz (-3dB)

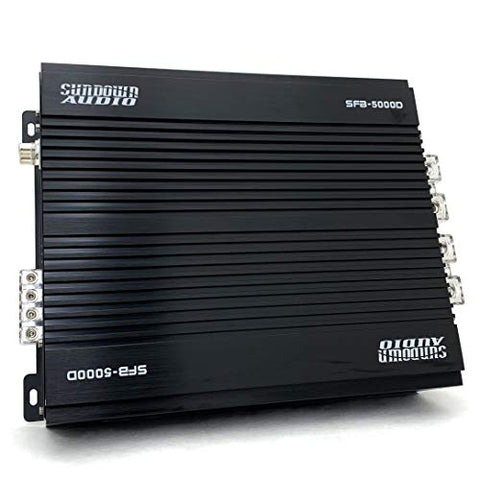

SUNDOWN AUDIO SFB-5000D | MONOBLOCK CLASS D AMPLIFIER
FEATURES:
Digital Class-D Mono Block Amplifier
Dual MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave – Variable Low Pass Filter
12 dB/Octave – Variable High Pass Filter
9 dB/Octave – Variable Bass Boost
4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)
Wired Remote Control with Clipping Indicator
SPECIFICATIONS (Tested @ 14.4v):
1 ohm Mono RMS: 5000W
2 ohm Mono RMS: 3200W
4 ohm Mono RMS: 2200W
Recommended Fuse Rating: 220A x 2
Low Pass Filter (Variable): 80Hz-20kHz
High Pass Filter (Variable): 15Hz-80Hz
Bass Boost @ 50Hz: 0-12dB
Input Sensitivity: 5V Max
S/N Ratio: 100dB
Working Voltage: 10.5v-15.5v
Dimensions: 9.00″ x 11.50″ x 2.75″
