- 70 watts RMS x 4 + 350 watts RMS x 1 at 4 ohms / 100 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms
- 200 watts RMS x 2 bridged at 4 ohms + 550 watts RMS x 1 at 2 ohms
- Class AB design on front and rear channels, Class D on sub channel
- 100 dB signal-to-noise ratio, 0.05% distortion on front and rear channels, 0.15% distortion on sub channel
- variable high- and low-pass filters (40-400 Hz, 12 dB/octave) on front and rear channel / variable bass boost (0-12 dB at 45 Hz) on sub channels /

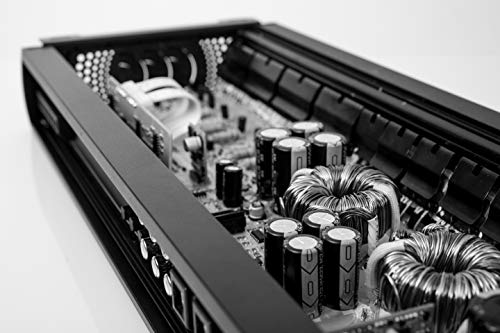

PHILOSOPHY Accurate Design and High Level Components To meet Morel's RD teams sonic requirements proper audiophile grade components are used to ensure the highest-level performance. The MPS incorporate a fully balanced differential inputs that provide superior noise rejection and can endure up to 20 volts of signal input allowing even factory speaker-level signal to be accepted through the RCA connections. High fidelity Texas Instruments OP amps and ultra-low tolerance surface mount components keep the integrity of the audio signal as pure as possible. Protection and thermal management is managed via an onboard microprocessor allowing our engineers to design the amplifier without the need for internal fuses that can impede power delivery to the power supply. Innovation is at the heart of every Morel product The new Morel Performance Series amplifiers were developed with the same passion and product philosophy that lead Morel over the past 42 years. The companys RD team worked diligently to engineer the MPS series so they provide a fine balance of built quality sonic performance and affordability. As a high fidelity speaker manufacturer Morel thoroughly recognizes how poorly designed amplifiers and electronics can ruin the performance potential of a speaker system. With this in mind the engineering directive for the MPS amplifiers was simple produce a series of amplifiers to be exceptionally musical and dynamic with clean uncolored power that can drive speakers to their full sonic potential. Accurate Design and High Level Components With installers in mind Morel's new amplifiers provide a unique feature set and installation-friendly design. Each model uses a single-sided circuit layout with all connections on one side of the amplifier making installation simple and clean. Preamp tuning and setting options are located discretely under a removable panel at the top of the amplifier. Each amplifier is also devised to integrate with OEM audio
